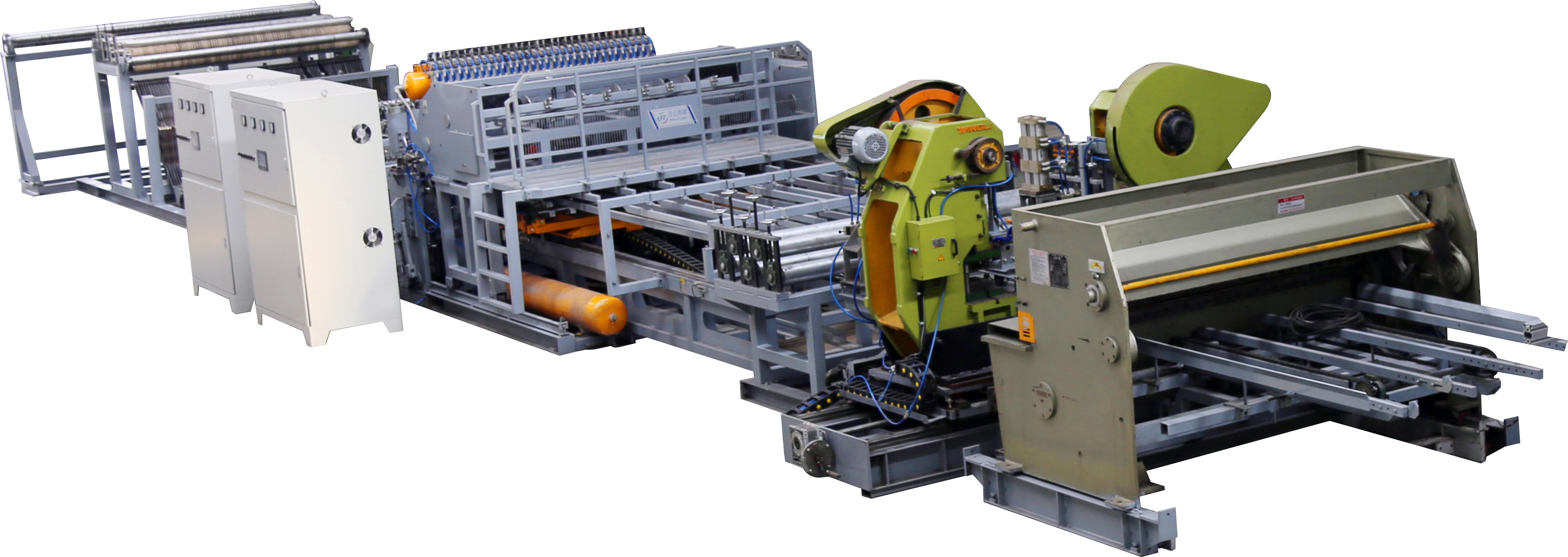

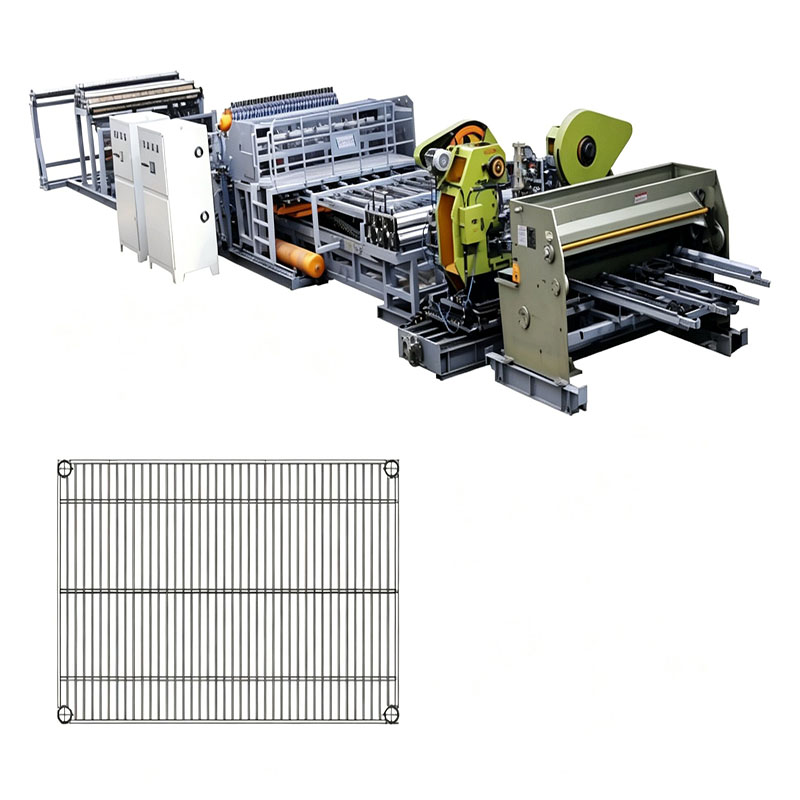

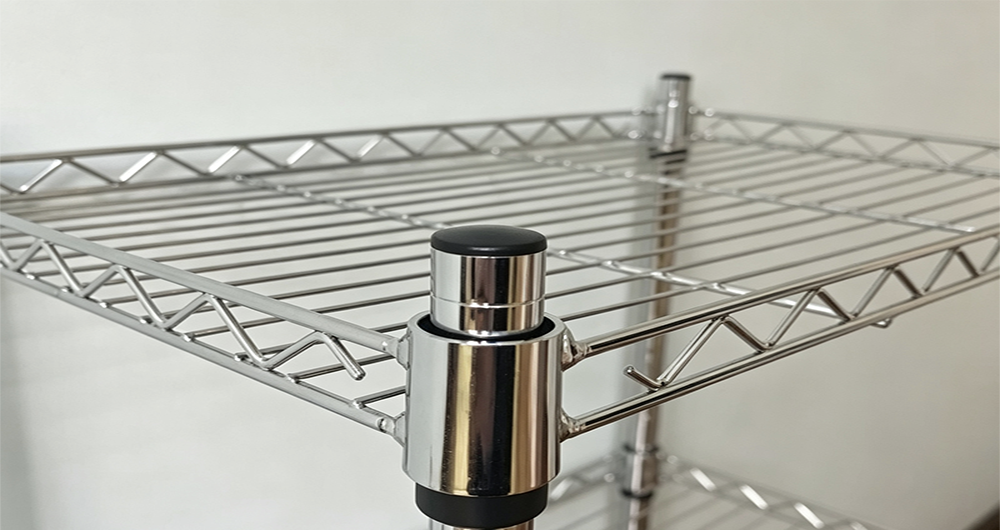

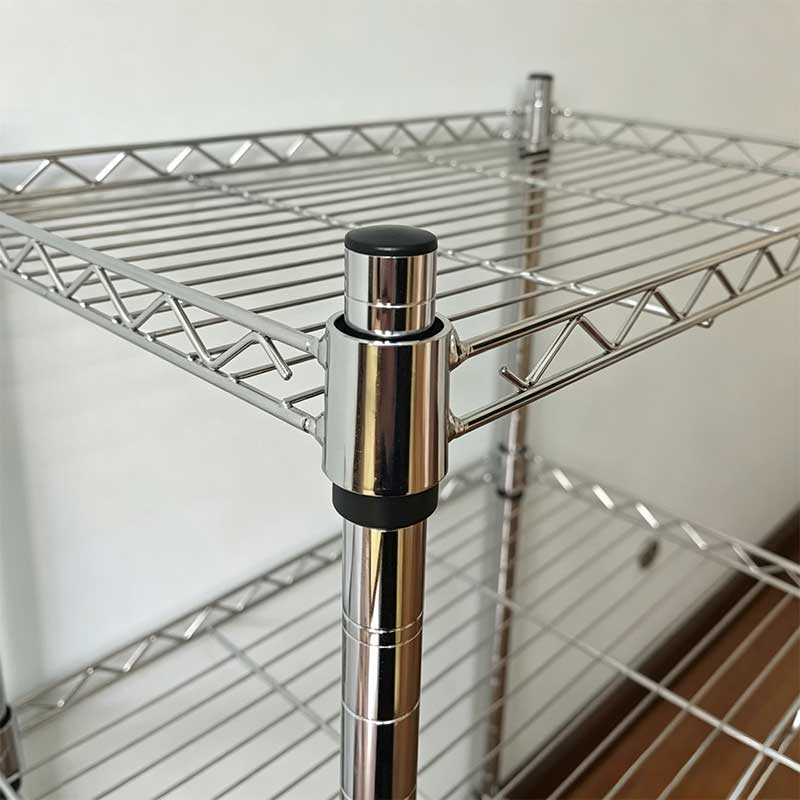

This Wire Shelf Welding Machine works with 3‑6 mm steel wire, maximum mesh width up to 2000mm, producing wire shelf mesh.
1.High‑power independent water‑cooled welding system: Equipped with 7 sets of 160 kVA individual water‑cooled welding transformers and rigid copper busbars. It reaches 60‑80 welding strokes per minute and supports 24‑hour heavy‑duty non‑stop production without power decay for stable solid welding spots, perfectly adapting to thick wire shelf welding requirements.
2.Complete all‑in‑one workflow: Integrates longitudinal‑wire straightening, feeding, multi‑point synchronous welding, mesh traction, 5‑axis leveling, pneumatic shearing and automatic stacking. Finished mesh panels are stacked automatically to cut manual handling work.
3.Intelligent control & safety protection: Industrial PLC touch‑screen for digital setup of mesh aperture and mesh length. Photoelectric wire‑missing sensors trigger auto‑stop to reduce defective rate and protect machine components.
4.High‑precision feeding & traction for flat mesh
Servo‑driven cross‑wire feeding with magnetic‑adsorption rotary discharge prevents wire tangling and jamming, suitable for rigid feeding of 3-6mm thick steel bars.
Servo helical‑rack‑pinion traction plus synchronous rigid double‑rail guide avoids mesh offset and keeps accurate mesh dimension.
5‑axis inline leveling mechanism offsets thermal deformation caused by high-power thick bar welding for flat finished panels.
5.Fast specification change‑over: Side‑mount electrodes, quick‑release electrode supports and movable positioning magnets speed‑up adjustment when switching mesh sizes. Longitudinal wire spacing is mechanically adjustable; cross‑wire spacing can be programmed via touch‑screen HMI, meeting diverse specification production of thick wire shelf mesh.
6.Optional module & reliable after‑sales: Optional mesh‑winding module for rolled mesh output. Standard 12‑month warranty, 24/7 remote video technical support. Paid on‑site overseas commissioning and operator training service are available.
Wire diameter | 3‑6mm | Welding pressure mode | Mechanical pressing |
Longitudinal wire feeding mode | Pre‑straightened bars feeding | Control system | PLC programmable touch‑screen control |
Transverse wire feeding mode | Pre‑straightened bars feeding | Welding transformer | 7 sets × 160 kVA, independent single control |
Longitudinal wire spacing | ≥20mm, mechanically adjustable | Allowable external voltage fluctuation | ±10 % |
Transverse wire spacing | ≥50mm, programmable adjustable | Power supply | 380V, 3‑phase, 50Hz |
Finished mesh panel length | 300‑800 mm, adjustable | Air source working pressure | 0.6‑0.8 MPa |
Maximum working width | 2000 mm | Cooling system | Circulating water‑cooled |
Quantity of welding points | 24 sets | Safety protection | Photoelectric wire‑missing detection with auto‑stop |
Welding frequency | 60‑80 strokes / min | Optional configuration | Roller-based film transport and automatic mesh stacking device |
Function: Align the ends of threaded iron wires and feed them into welding main machine
1. Adopt servo drive combined with pneumatic clamping to realize precise feeding;
2. Long stroke design significantly improves mesh sheet connection efficiency;
3. Pneumatic baffle is flexibly adjustable.
Function: Electrode pressurization (cylinder pressing down) and form welded mesh sheet by using electric current to generate heat through contact iron wires
1. Hanging welding method with convenient adjustment and stable pressure;
2. Quick-release upper and lower electrodes for fast specification replacement;
3. Water-cooled resistance welding transformer for long service life;
4. Movable positioning magnet with reserved space for specification replacement;
5. Weft wire detection effectively reduces waste mesh and automatic shutdown in case of fault;
6. Hafnium-chromium bronze welding electrode material with high service life and good conductivity;
7. Hard copper bar at the bottom connected to transformer for stable conductivity.
Function: Allows for high-precision cutting of straight cross wire.
Application Scenario: Cross wire diameters ranging from 3 to 6 mm.
1. Driven by a servo motor and coupled to a high-precision rotary positioning table, ensuring the exact drop point of each individual wire.
2. Features a design that utilizes strong magnetic adsorption combined with a rotary discharge mechanism; this automatically sorts the wires and feeds them into a smaller hopper, effectively preventing wire tangling and jamming.
3. The hopper deflector is adjustable via a spindle mechanism integrated with linear guides.
4. Both the main and auxiliary hoppers are equipped with wire separation mechanisms, ensuring smooth operation and preventing tangling—even during continuous, high-volume feeding.
5. 4-level inductive switch detection ensures stable operation of each part.
Function: Realize high-precision, uninterrupted mesh stepping movement to ensure continuous and stable mesh welding process
1. Adopts 7-grade precision milled helical rack linked with precision planetary reducer + servo drive,featuring low running noise and high speed;
2. Dual-guide rail synchronous guiding with rigid support ensures flat and non-offset mesh sheet and stable and controllable overall precision;
3. Single-pump synchronous oil injection design enables one-click maintenance of linear guide rails and sliders, facilitating easy maintenance and extending service life;
4. Fixtures accurately align with cross welding points
Welding Machine
Copper motors
Welded pneumatic couplings
Mechanical
welded joints
Blanking
disc
