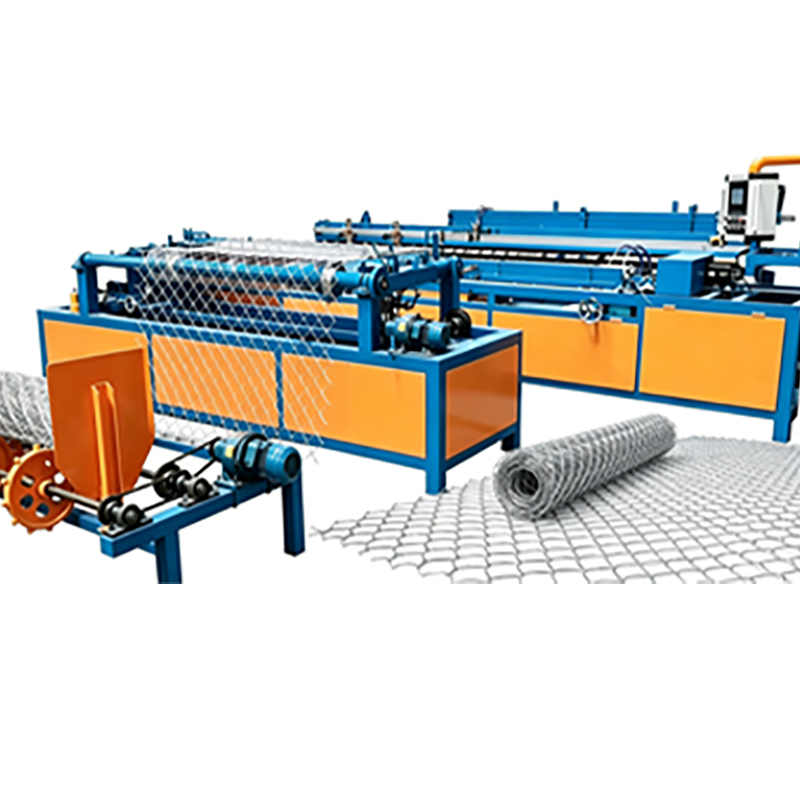

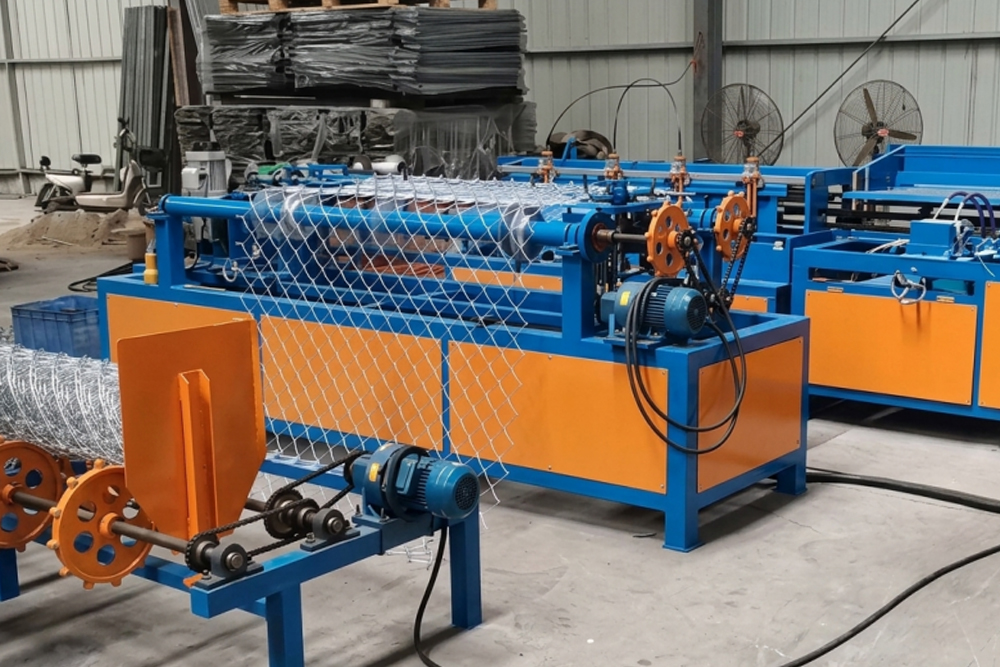

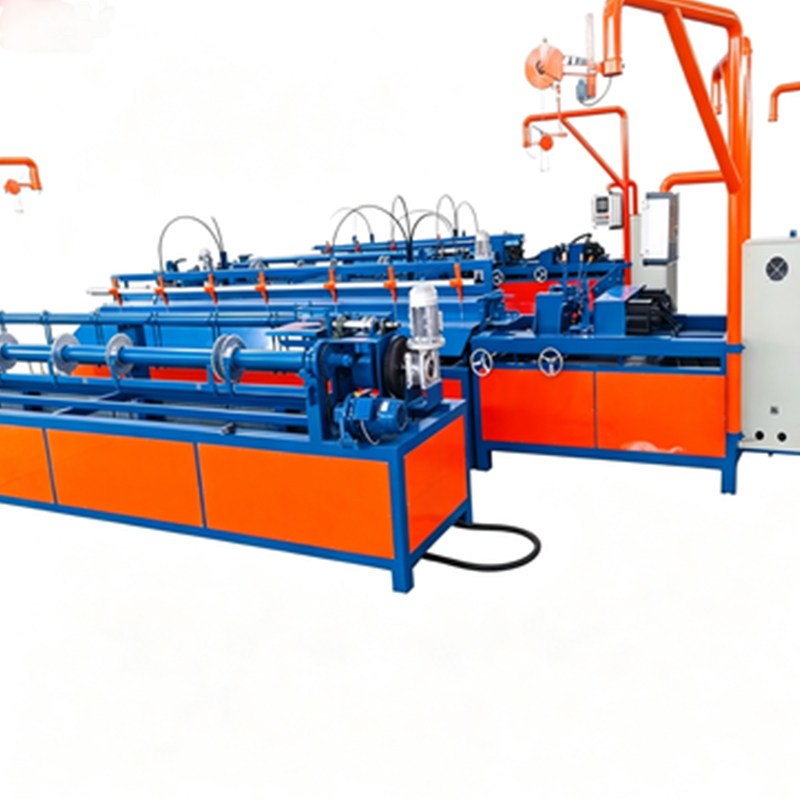

The Double Wire Double Mold Chain Link Fence Machine is a high-efficiency automatic solution for the production of chain link fence. Featuring a double-wire feeding system and double-mold weaving technology, the machine can produce two mesh rolls simultaneously, significantly increasing production capacity compared with conventional single-wire machines.
The machine is equipped with an automatic control system for precise mesh opening, stable wire feeding and consistent weaving performance. The production process can be efficiently controlled with reduced manual operation, making it suitable for continuous and large-scale chain link fence production.

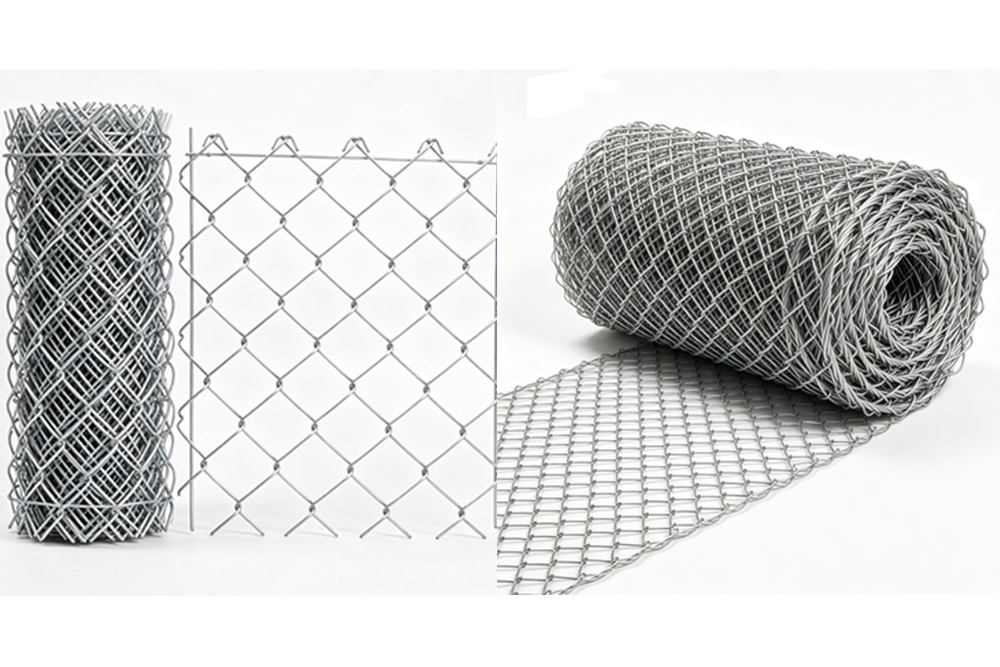

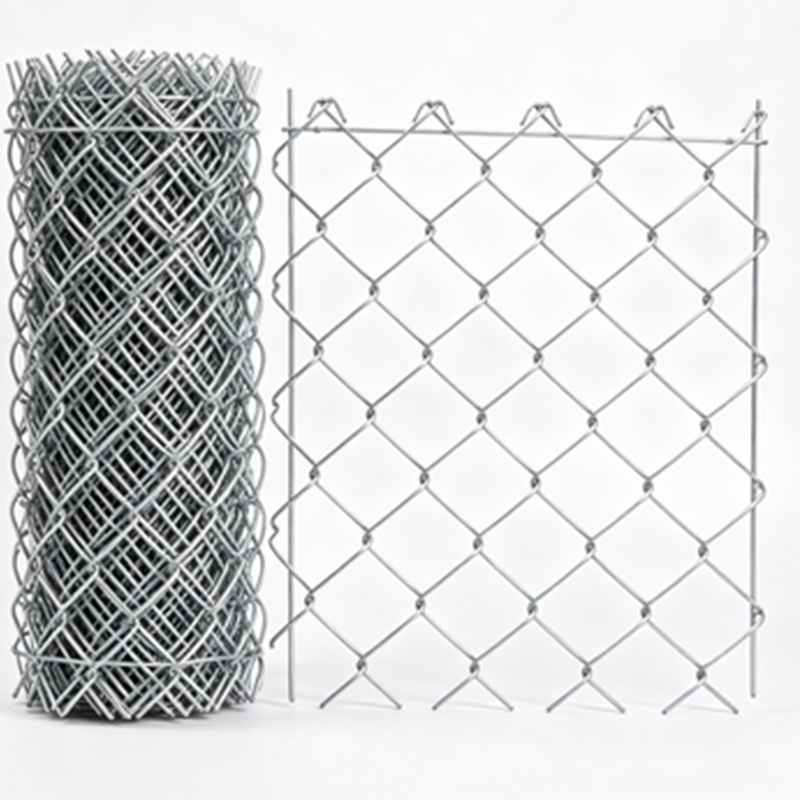

It can process galvanized wire, PVC-coated wire and other low-carbon steel wires to produce chain link mesh in different mesh sizes and widths. The finished mesh is widely used for security fencing, highway and railway fencing, agricultural fencing, sports facilities, construction sites and industrial applications.
Key Features
Double Wire Feeding – Two wires are fed simultaneously to improve production efficiency.
Double Mold Weaving – Two weaving systems operate at the same time for higher output.
Automatic Control – PLC-based control system enables convenient operation and stable production.
High Weaving Precision – Consistent mesh openings and uniform diamond-shaped mesh.
Wide Application Range – Suitable for galvanized wire, PVC-coated wire and other steel wires.
Continuous Production – Designed for efficient and stable operation in large-scale production.
Reduced Labor Requirements – Automated production helps reduce manual intervention and operating costs.
Applications
The machine is widely used for manufacturing chain link fence for highways, railways, farms, construction sites, sports fields, industrial facilities and general security fencing.
Wire diameter | 1.6mm‑4.8mm | Overlock form | Curved edges on both sides (or curved edges + twisted edges) |
Machine Function | automatically weaves fence mesh + lock edge + twist edge dual use+fence rolling | Machine Dimensions | 5800mm2200mm2100mm (3m Fence machine) |
Drive System | Servo motor + control cabinet ，Housine servo motor and drive system | Installed Power | 14 kw |
wire spacing | 40mm-100mm | Machine Weight | 2000 Kg |
Electrical components | Tian zheng Electrical components (or customers choose the brand) | Voltage | 380V50Hz |
Finished mesh panel length | 10m-30m | Average Power | 8Kw |
Maximum working width | 0.5m‑3.5m | Wire materials | Galvanized iron wire and PVC coated wire |
Control System | Touch screen +PLC | Work shop Usable area | 5.5mx5m |
Production Speed | 1200kg-3600kg/day | Free accessories | 1.Operation control box 3.Fence weaving and edge bending part 4.Fence rolling part 5.Pay-off rack 6.Sensor(proximity switch)2pcs,wirepress wheel 2pcs, pressbutton1. |

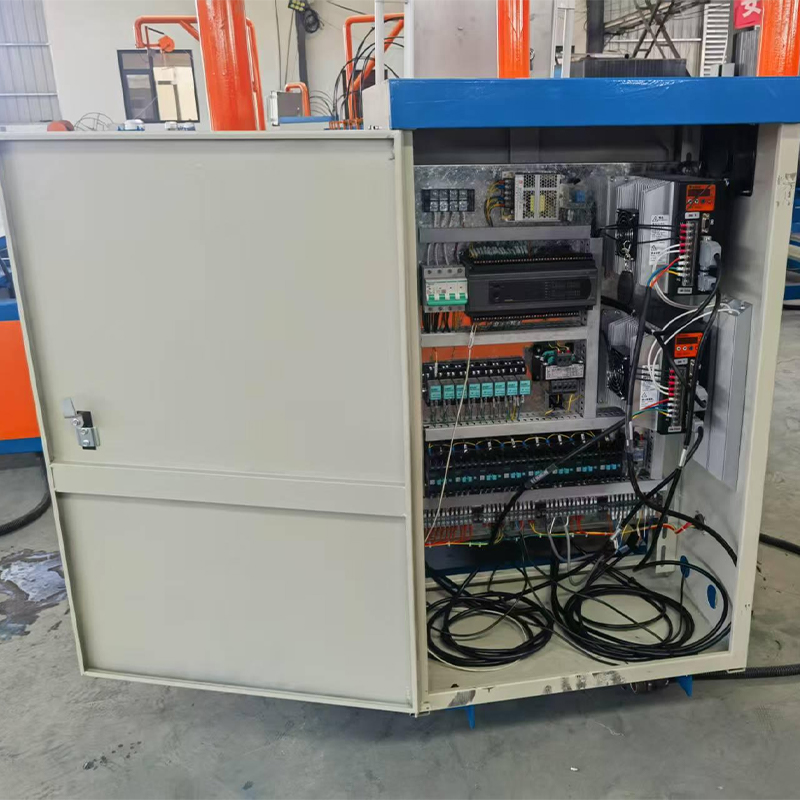

PLC controller is selected for control cabinet
Schneider Main Circuit breaker
(optional)
Shanghai on solid state relay

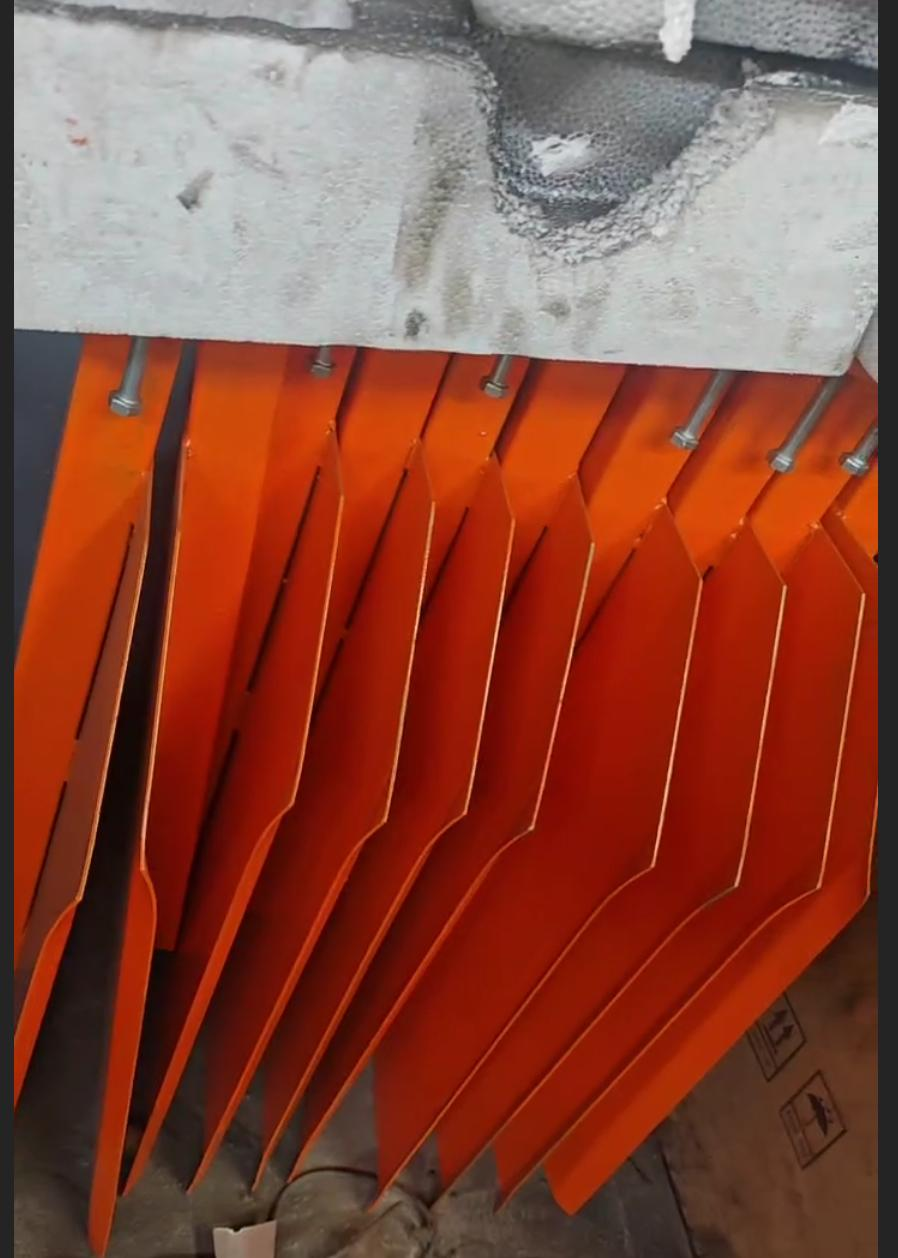

Fast Response & High Precision: Driven by pneumatic cylinders, the baffle reacts instantly to block and position the wire accurately, significantly improving weaving precision during high-speed operations.
High Automation Level: Seamlessly integrates with the PLC control system for automatic stopping, resetting, and counting, reducing manual labor and operation errors.
Impact Cushioning & Machine Protection: The pneumatic system provides natural air cushioning, absorbing the metal impact and protecting the forming dies and structural components from wear.
Flexible Adjustment: Allows easy setup and quick stroke adjustment when switching between different wire diameters, mesh sizes, or fence widths.
Smooth & Quiet Operation: Eliminates harsh mechanical clashing, making the machine operate much more smoothly with lower noise levels.
Prevents Slippage & Ensures Precise Length: Specially textured or high-friction surfaces grip the wire firmly, ensuring the woven mesh length exactly matches the PLC preset value.
Smooth & Uniform Mesh Traction: Provides consistent pulling force during high-speed weaving and rolling, preventing mesh deformation, tilting, or uneven aperture sizes.
Protects Wire Coating: Engineered tread patterns deliver high traction without excessive crushing, protecting galvanized or PVC coatings from damage.
Broad Wire Compatibility: Delivers reliable traction across various materials, including heavily galvanized wire, PVC-coated wire, black iron wire, and stainless steel wire.
Reduces Scrap Rate & Downtime: Prevents jamming, tangling, or loose coiling caused by slippage, enabling continuous production with minimal manual intervention.
High Automation & Precision: Allows precise control over weaving speeds, mesh length, and boundary edge processing through digital parameter settings.

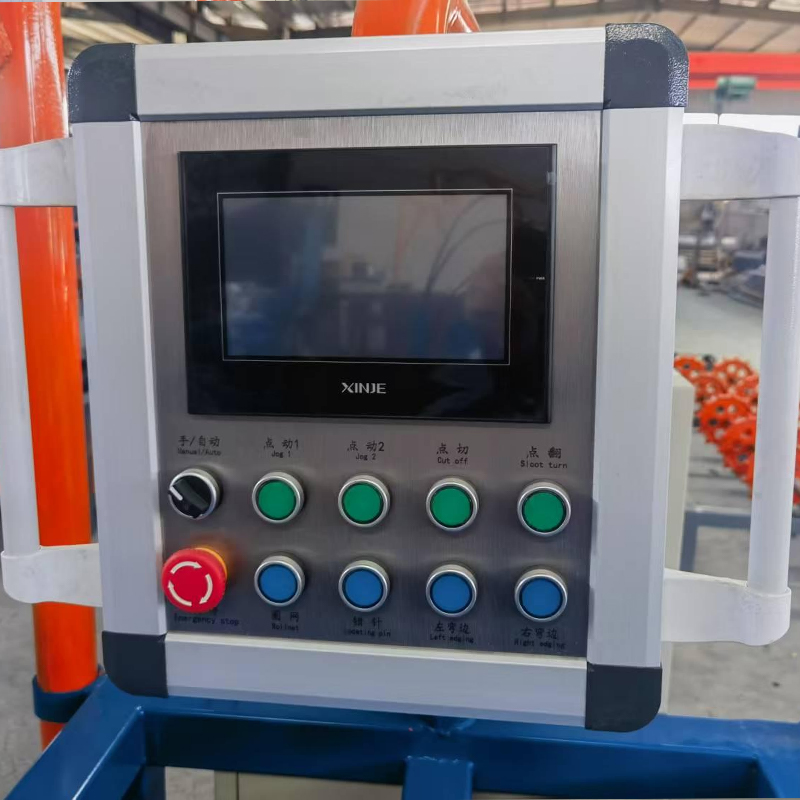

User-Friendly Touchscreen Interface: Features an intuitive HMI (Human-Machine Interface) for real-time monitoring, easy parameter adjustment, and quick operational status checks.
Fault Self-Diagnosis & Protection: Automatically detects operational anomalies, displays specific error codes on the screen, and triggers alarm/stop systems to minimize downtime.
Flexible Production Modes: Easily saves and switches between multiple mesh specification presets (e.g., mesh size, wire gauge, total roll length) without manual mechanical re-engineering.
High Stability & Anti-Interference: Industrial-grade PLC systems offer excellent resistance to electrical noise, dust, and temperature fluctuations, ensuring reliable 24/7 continuous operation.
Doubled Production Speed (Output): By operating two molds simultaneously in a side-by-side or stacked configuration, the machine can weave twice as much mesh in the same amount of time compared to a single-mold machine.
Significantly Improved Production Efficiency: Greatly increases the manufacturing throughput of a single machine unit, maximizing the utility of the floor space, power, and operator labor already in use.
Simultaneous Multi-Specification Production (Advanced Models): Many modern dual-mold machines, using intelligent PLC controls, allow different mesh specifications (like different mesh aperture sizes or wire gauges) to be produced on each mold at the same time.
Reduced Unit Production Cost: Doubling output while using the same labor and nearly the same energy lowers the overall cost per square meter of fence mesh, making the operation more competitive.
Enhanced Order Fulfillment Capability: Allows factories to handle large orders much faster or process multiple varied small orders simultaneously, improving delivery speed and customer satisfaction.
Smooth Wire Feeding: Ensures precise and effortless wire movement.
Prevents Wire Jamming: Reduces friction and eliminates wire tangling during weaving.
Higher Weaving Speed: Allows stable high-speed operation.
Easy Maintenance: Simple structure, easy to clean and adjust.
Durable & Wear-Resistant: Extends equipment lifespan and lowers operating costs.
Main configuration of the machine

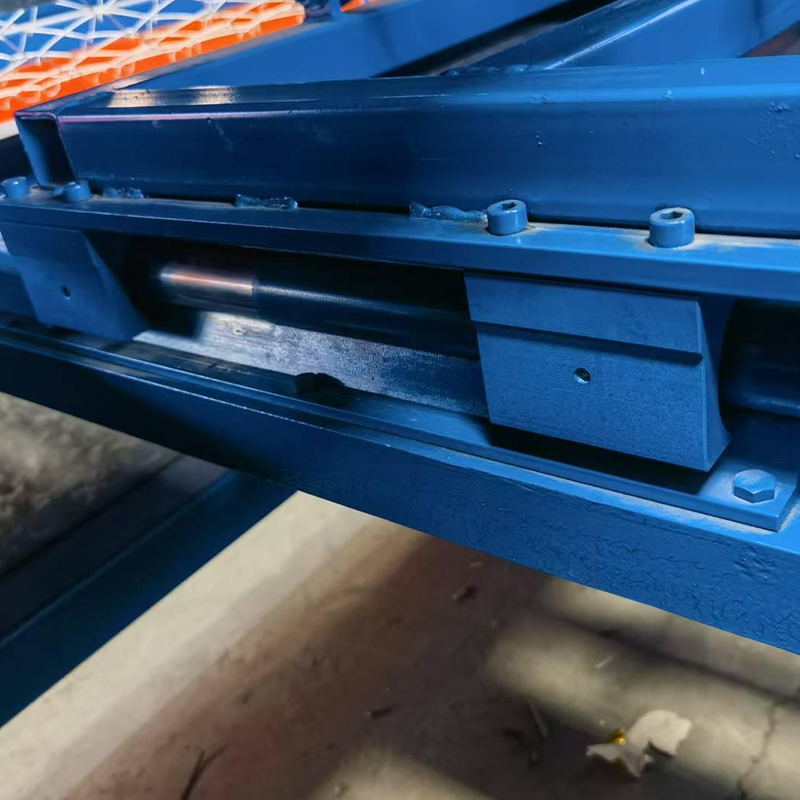

Rail taxiing is more accurate and durable
Touch Screen PLC control operationplat form

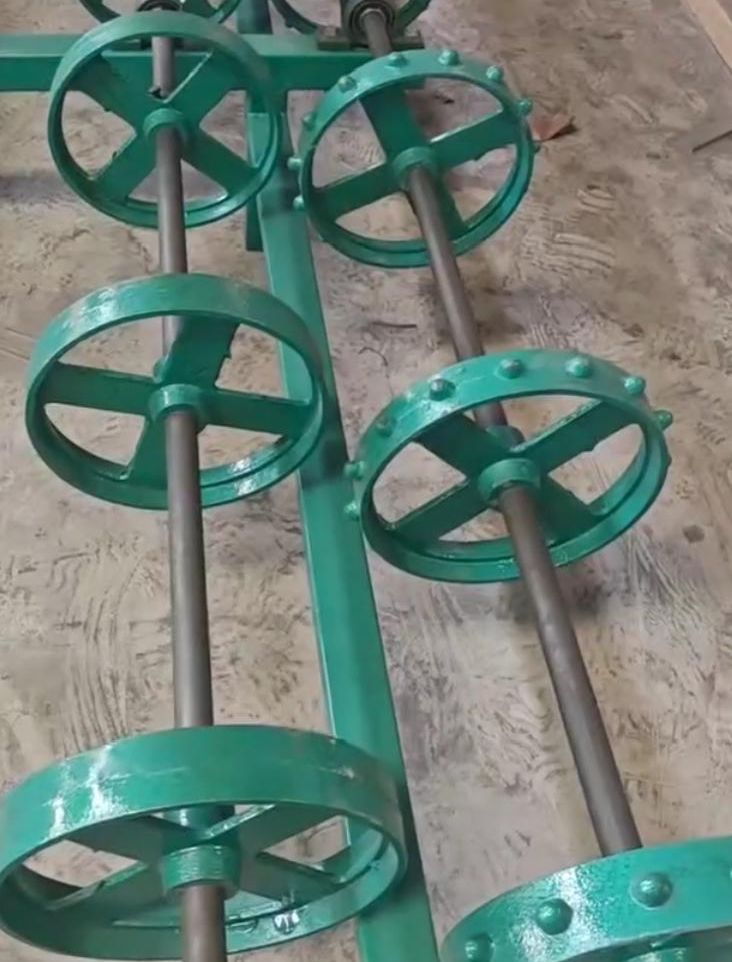

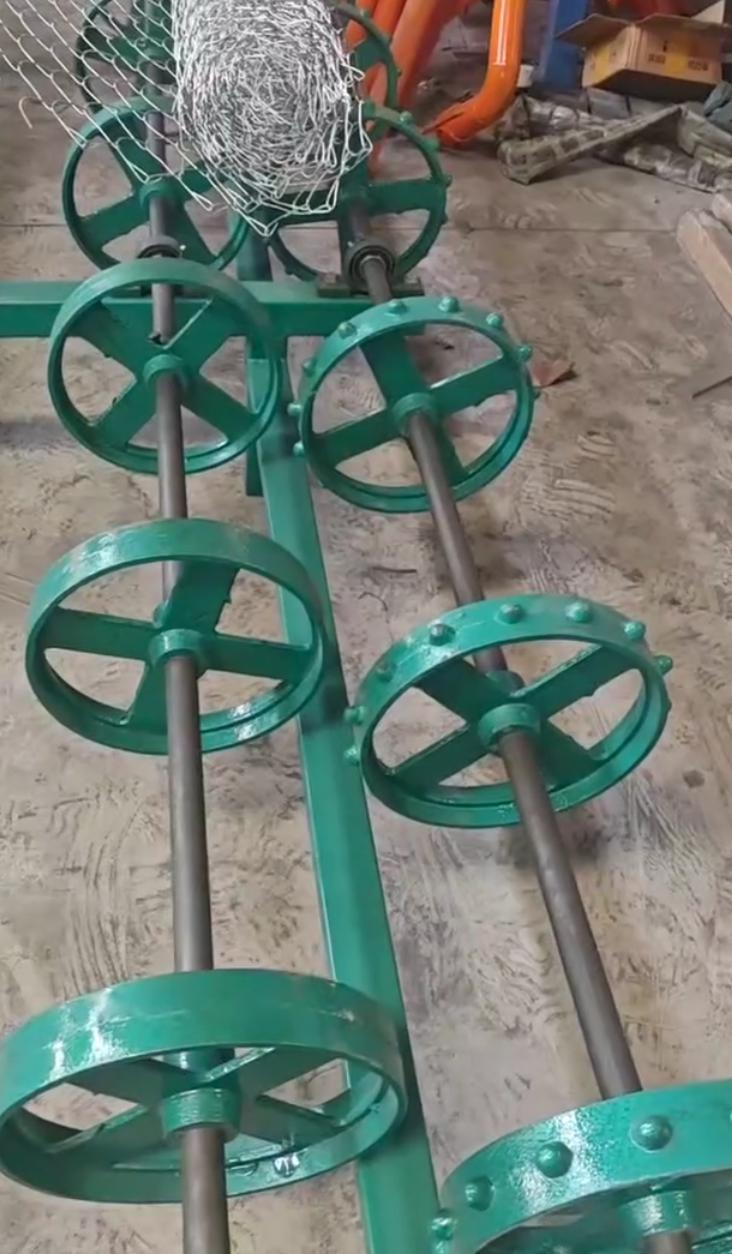

Newpulley:non-slipanddurable
Meshmama Machinery Co., Ltd is a professional manufacturer & exporter specialized in full‑automatic wire‑mesh welding machinery. Our self‑owned manufacturing factory supplies standard and custom‑built mesh welding machines for construction reinforcement, security fence, mine support and livestock‑breeding industries.
All machines comply with CE standards and go through strict pre‑delivery aging testing. We offer full turn‑key service: pre‑sales project consultation, pre‑shipment inspection, 12‑18‑month warranty, remote technical guidance and global spare‑parts supply.

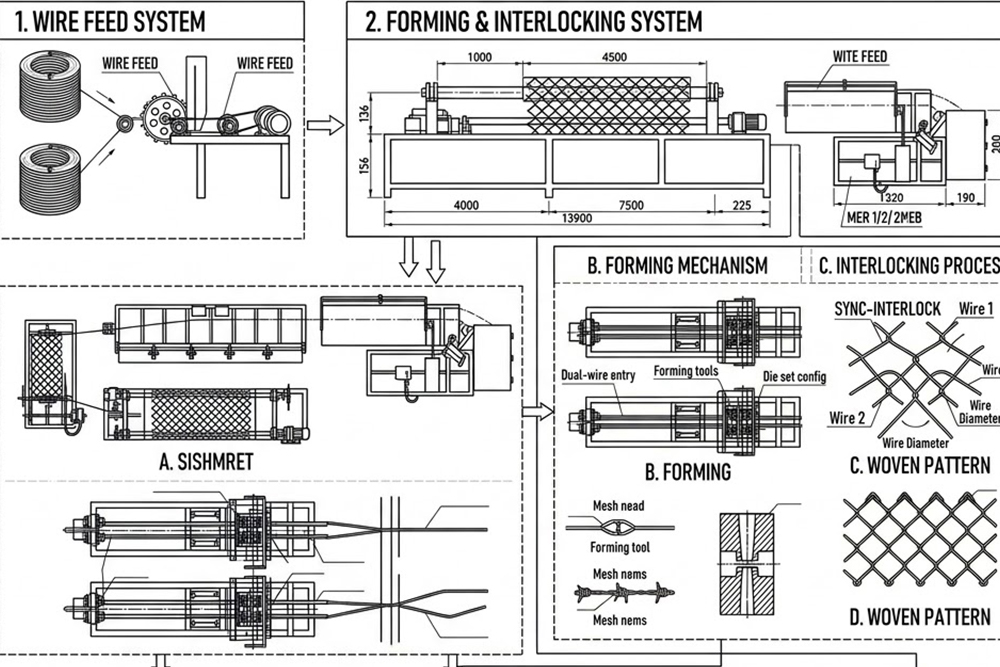

A double-wire chain link fence machine operates by feeding two wires simultaneously into a specialized forming mold system. The two wires are spiraled into interlocking zig-zag shapes at the same time and automatically threaded together into the main mesh sheet. Once the set length is reached, pneumatic cutters trim the wire, automated mechanisms perform edge processing (knuckling or twisting), and the finished mesh is rolled tightly onto a collection system.
Doubled Production Output: By processing two wires concurrently, output capacity reaches up to 150–250 m²/h, effectively doubling the output of traditional single-wire machines.
Lower Operating Costs: Labor and factory footprint remain largely unchanged while output is doubled, significantly lowering per-unit production costs.
Superior Precision & Automation: Integrated PLC touchscreens, anti-slip traction rollers, and pneumatic baffles ensure accurate mesh length, smooth wire movement, and reduced downtime.
Q: What is a Double-Wire Chain Link Fence Machine?
A: It is an automated machine that feeds two wires into a mold simultaneously to weave chain link fencing, doubling the output speed compared to traditional single-wire machines.
Q: What are the main advantages of double-wire production?
A:Double Output: Production capacity reaches up to 150 -250 ㎡/h, greatly boosting efficiency.
Q: Which wire materials are compatible with double-wire machines?
A: Galvanized wire , PVC/PE coated wire , stainless steel wire , and low-carbon steel wire
Q: What wire diameter and mesh size ranges are supported?
A: Wire Diameter : Typically 1.5mm- 4.5 mm(depending on machine specs).
Mesh Size : Standard range is 25 mm to 100 mm.
Q: What payment terms do you accept for machine orders?
A: Our standard term is 30% T/T deposit, and 70% balance paid by T/T before shipment after machine inspection. We can discuss other payment solutions upon special project requirements.
Q: How long will be the normal production lead‑time?
A: Production lead‑time depends on machine model and customization requirements. Normally it takes 20 working days after receiving your deposit. We will confirm exact delivery schedule in formal quotation.
Q: What is your export packing and delivery arrangement?
A: Electric control cabinets are packed with fumigated wooden case. Main machine is wrapped by waterproof plastic film. Machines will be loaded into full‑size shipping containers. We quote FOB Tianjin price by default; freight cost will be on buyer’s side.
Q: What support do you get for machine repair and troubleshooting?
A: We offer 24/7 remote video technical support for fault diagnosis and online repair guidance. Our engineers can guide your local operator to solve most running problems remotely.
Q: How to purchase replacement spare parts after warranty expires?
A: We supply original spare‑parts with competitive price all the machine lifetime. You can send us part number or failure description, we will quote and arrange shipment for spare‑parts order quickly.
Q: Do you provide overseas on‑site installation and commissioning service?
A: Yes. Overseas on‑site engineer service is available at extra cost, including installation, commissioning and operator training. Client shall be responsible for engineer round‑trip tickets, accommodation and local transportation.
Q: Can I inspect factory or test machines before shipment?
A: Welcome customers to visit our factory for on‑site inspection. Virtual live‑stream video machine testing is also supported if you cannot come in‑person. We accept third‑party inspection before delivery.
