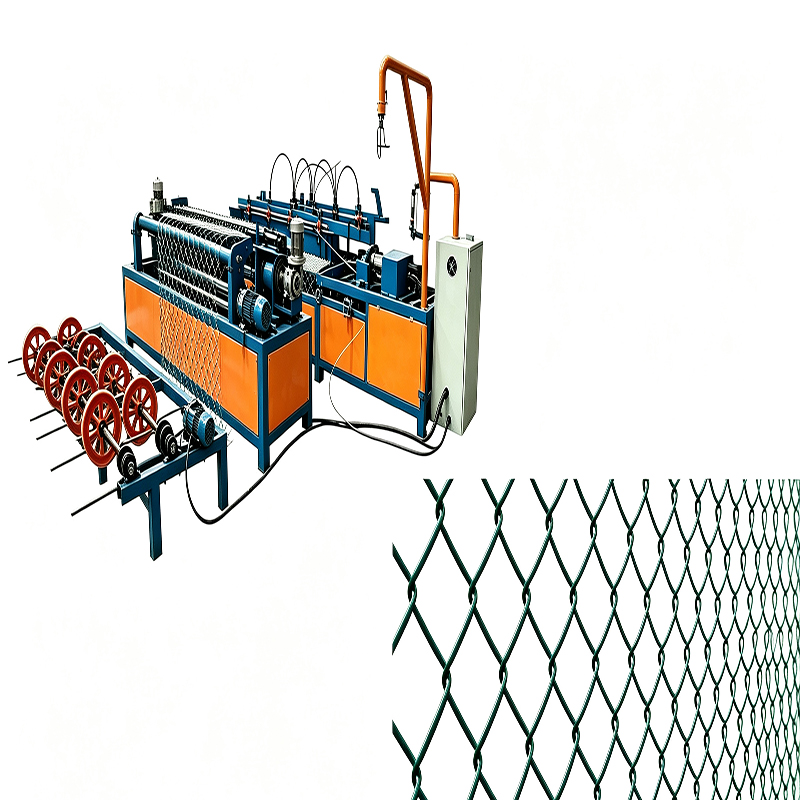

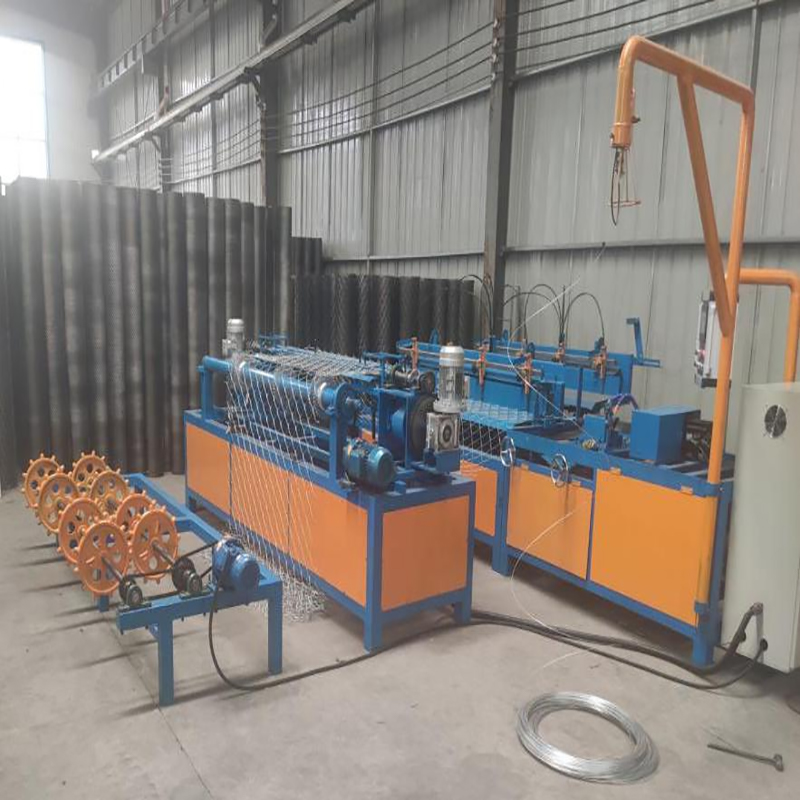

The PVC Chain Link Fence Machine is a high-efficiency automatic solution for the production of PVC coated chain link fence. Featuring an automatic wire feeding system and precision weaving technology, the machine can produce high-quality diamond mesh continuously, ensuring stable mesh appearance compared with ordinary mesh machines.
The machine is equipped with an automatic control system for precise mesh opening, stable wire feeding and consistent weaving performance. The production process can be efficiently controlled with reduced manual operation, making it suitable for continuous and large-scale PVC chain link fence production.

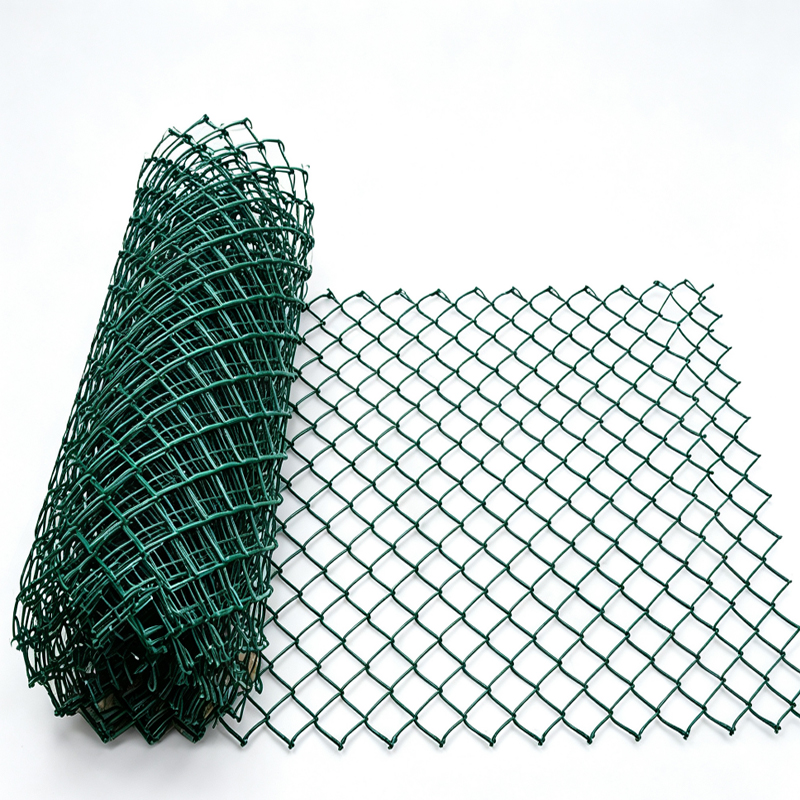

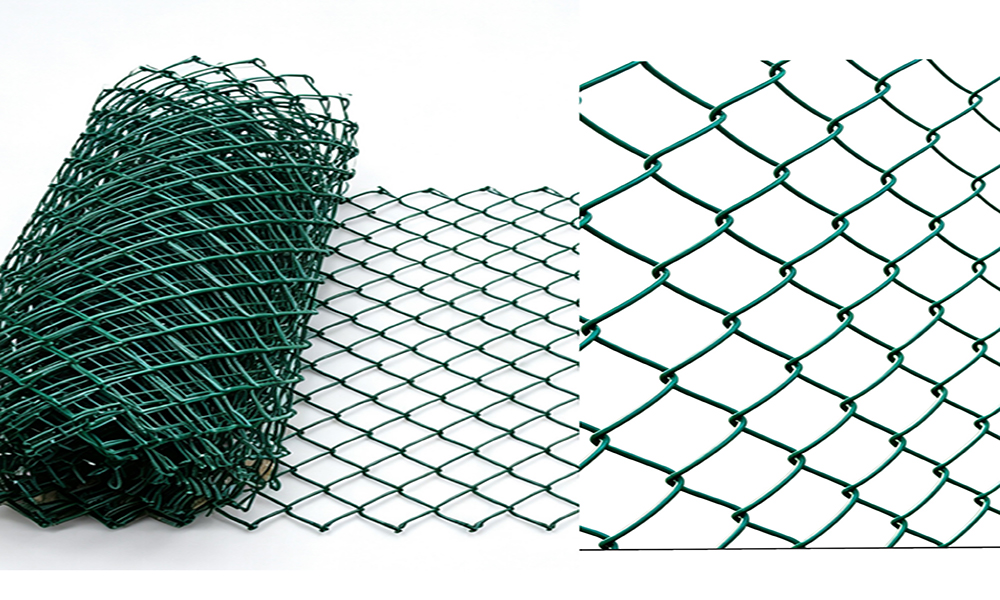

It can process galvanized wire, PVC-coated wire and other low-carbon steel wires to produce chain link mesh in different mesh sizes and widths. The finished mesh is widely used for security fencing, highway and railway fencing, agricultural fencing, sports facilities, construction sites and industrial applications.
Key Features
Automatic Wire Feeding – Wires are fed steadily to improve production efficiency.
Precision Weaving – Stable weaving system for uniform diamond mesh output.
Automatic Control – PLC-based control system enables convenient operation and stable productio.
High Weaving Precision – Consistent mesh openings and uniform diamond-shaped mesh.
Wide Application Range – Suitable for galvanized wire, PVC-coated wire and other steel wires.
Continuous Production – Designed for efficient and stable operation in large-scale production.
Reduced Labor Requirements – Automated production helps reduce manual intervention and operating costs.
Applications

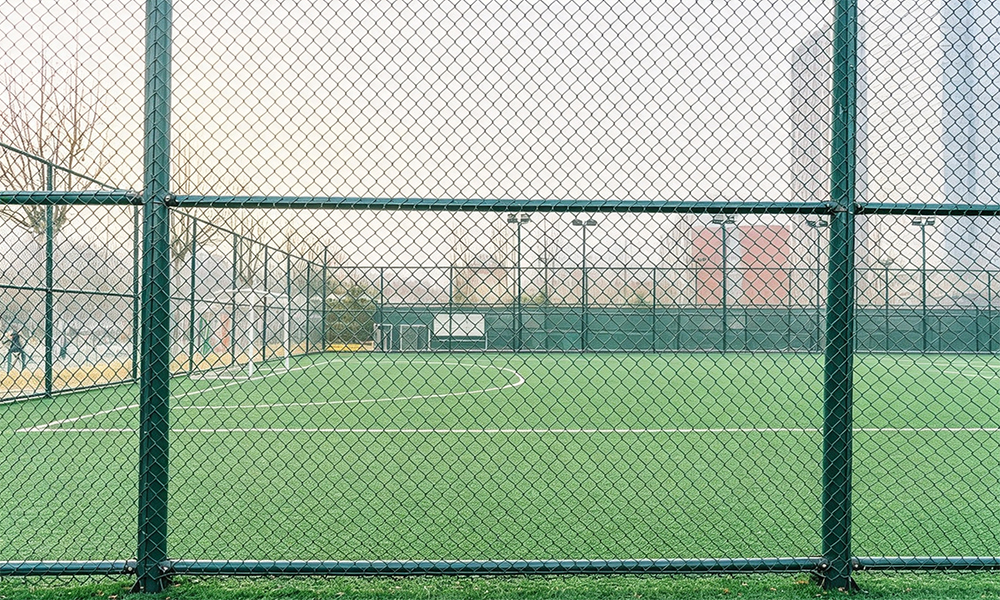

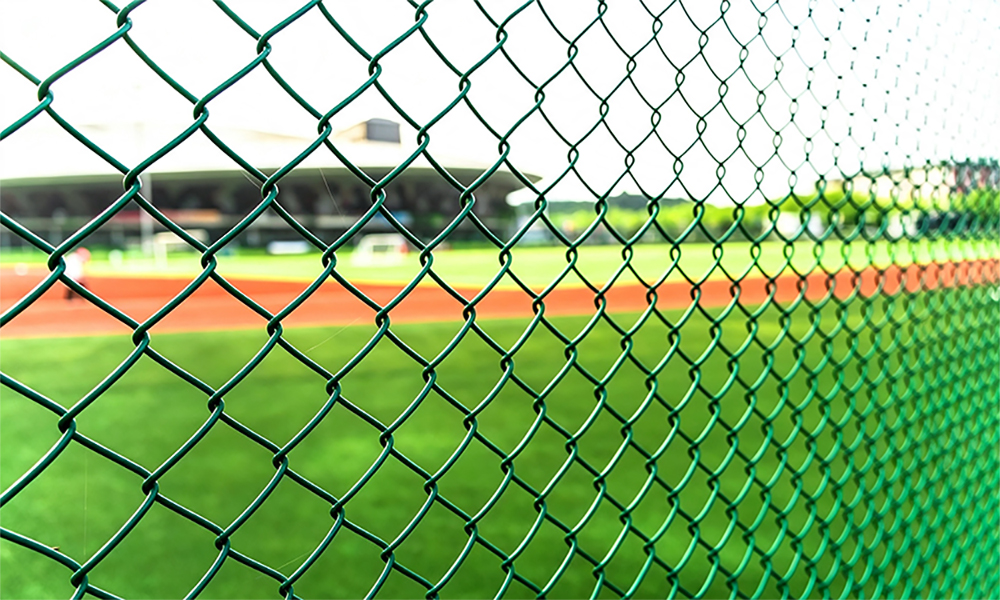

The machine is widely used for manufacturing PVC chain link fence for highways, railways, farms, construction sites, sports fields, industrial facilities and general security fencing.
Wire diameter | 1.3mm‑4.0mm | Overlock form | Curved edges on both sides (or curved edges + twisted edges) |
Machine Function | Automatically weaves PVC chain link fence mesh + twist edge, fence rolling | Machine Dimensions | 9800mm×2300mm×1450mm (6m PVC fence machine) |
Drive System | Servo motor + control cabinet ，Housine servo motor and drive system | Installed Power | 9.8 kw |
wire spacing | 25mm-100mm | Machine Weight | 1800 Kg |
Electrical components | Tian zheng Electrical components (or customers choose the brand) | Voltage | 380V50Hz |
Finished mesh panel length | Continuous roll | Average Power | 3.8Kw |
Maximum working width | 6.5m | Wire materials | Galvanized wire, PVC-coated wire and drawn wire |

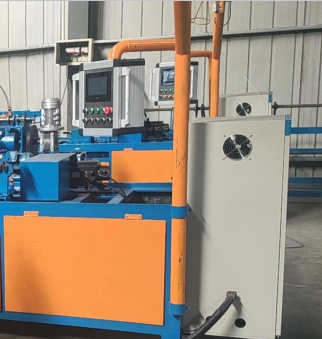

Control System | Touch screen +PLC | Work shop Usable area | 7mx7m |
Production Speed | 80-100 m²/hour | Free accessories | 1.Operation control box 2.Spiral wire part 3.Fence weaving and edge bending part 4.Fence rolling part 5.Pay-off rack 6.Sensor(proximity switch)2pcs,wirepress wheel 2pcs,pressbuttonl |

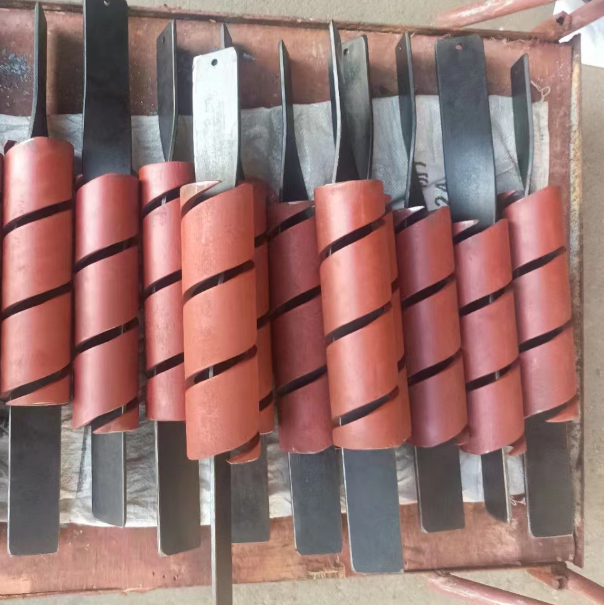

Two sets of moulds are supplied together with the machine. Made of high-strength wear-resistant material, they ensure stable mesh forming, uniform diamond mesh shape, and support quick switching of different mesh sizes. Long service life and low replacement cost.

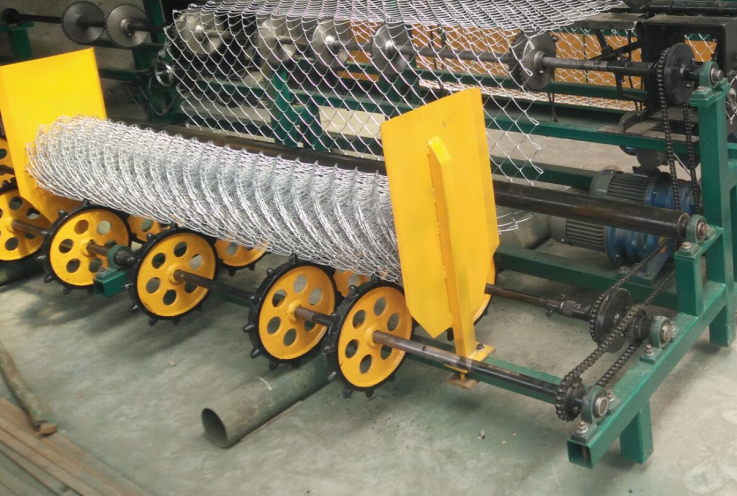

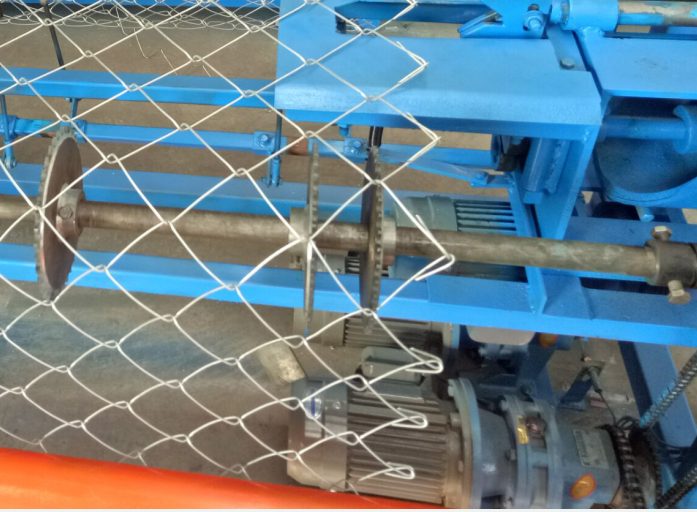

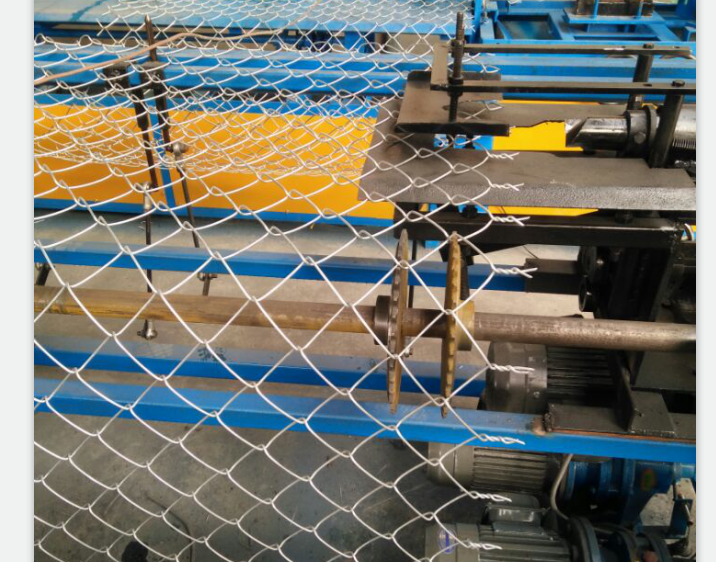

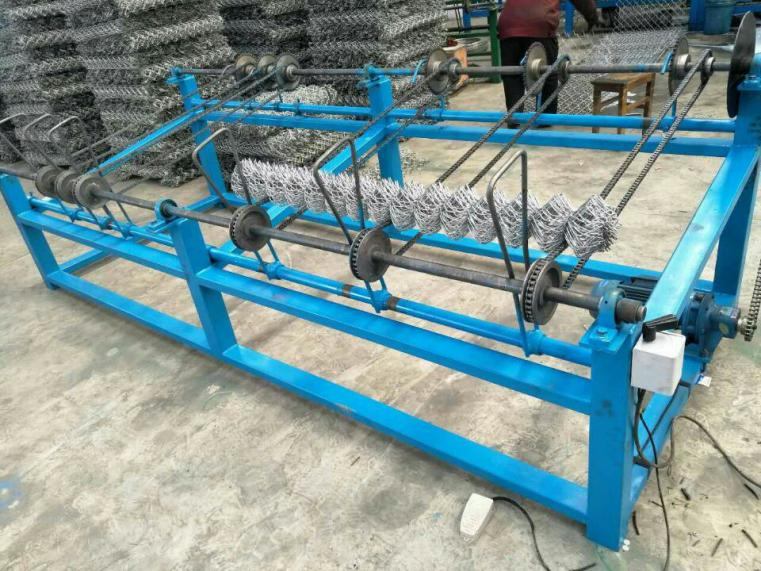

A single-wire chain link fence machine operates by feeding one wire from pay-off rack into a specialized forming mold system. The wire is spiraled into interlocking zig-zag shapes and automatically threaded together into the main mesh sheet. Once the set length is reached, pneumatic cutters trim the wire, automated mechanisms perform edge processing (knuckling or twisting), and the finished mesh is rolled tightly onto a collection system.
Stable Production Output: Steady output reaches 80-100 m²/h, suitable for producing PVC coated chain link mesh.
Wide Wire Range: It can process wire diameter 1.3mm-4.0mm, compatible with galvanized wire and PVC coated wire.
Superior Precision & Automation: Integrated PLC touchscreen, servo drive system, and pneumatic baffles ensure accurate mesh length, smooth wire movement, and reduced downtime.

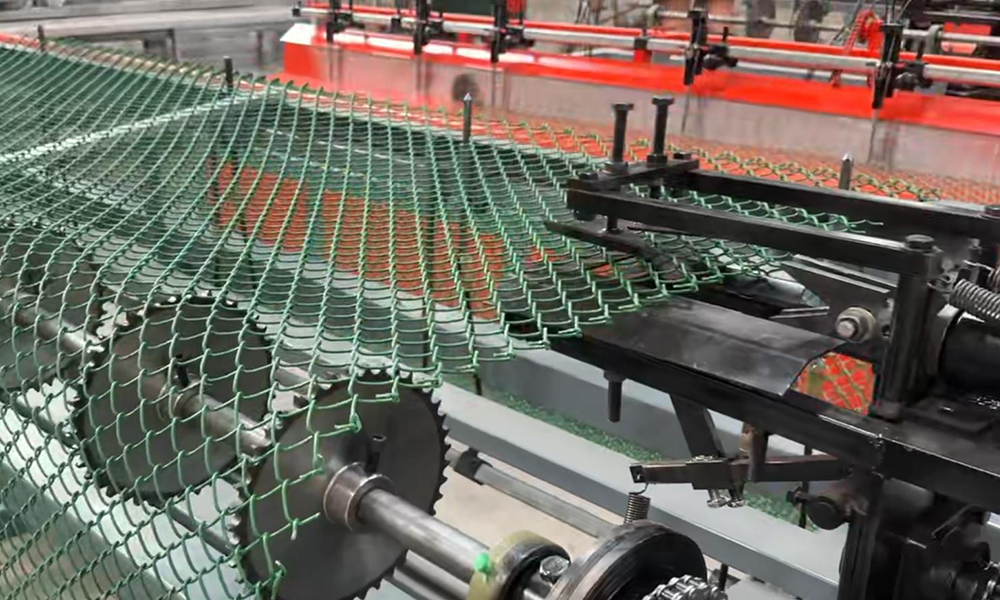

Q: What is a Single-Wire PVC Chain Link Fence Machine?
A: It is an automated machine that feeds single wire into a mold to weave PVC chain link fencing.
Q: What are the main advantages of single-wire production??
A:Double Output: Production capacity reaches up to 80 - 100 ㎡/h, stable and easy operation for PVC mesh production.
Q: What wire diameter and mesh size ranges are supported?
A: Galvanized wire, PVC-coated wire and low-carbon steel wire.
Q: What wire diameter and mesh size ranges are supported?
A: Wire Diameter : Typically 1.3mm- 4.0 mm(depending on machine specs).
Mesh Size : Standard range is 25 mm to 100 mm.
Q: What payment terms do you accept for machine orders?
A: Our standard term is 30% T/T deposit, and 70% balance paid by T/T before shipment after machine inspection. We can discuss other payment solutions upon special project requirements.
Q: How long will be the normal production lead‑time?
A: Production lead‑time depends on machine model and customization requirements. Normally it takes 20 working days after receiving your deposit. We will confirm exact delivery schedule in formal quotation.
Q: What is your export packing and delivery arrangement?
A: Electric control cabinets are packed with fumigated wooden case. Main machine is wrapped by waterproof plastic film. Machines will be loaded into full‑size shipping containers. We quote FOB Tianjin price by default; freight cost will be on buyer’s side.
Q: What support do you get for machine repair and troubleshooting?
A: We offer 24/7 remote video technical support for fault diagnosis and online repair guidance. Our engineers can guide your local operator to solve most running problems remotely.
Q: How to purchase replacement spare parts after warranty expires?
A: We supply original spare‑parts with competitive price all the machine lifetime. You can send us part number or failure description, we will quote and arrange shipment for spare‑parts order quickly.
Q: Do you provide overseas on‑site installation and commissioning service?
A: Yes. Overseas on‑site engineer service is available at extra cost, including installation, commissioning and operator training. Client shall be responsible for engineer round‑trip tickets, accommodation and local transportation.
Q: Can I inspect factory or test machines before shipment?
A: Welcome customers to visit our factory for on‑site inspection. Virtual live‑stream video machine testing is also supported if you cannot come in‑person. We accept third‑party inspection before delivery.
